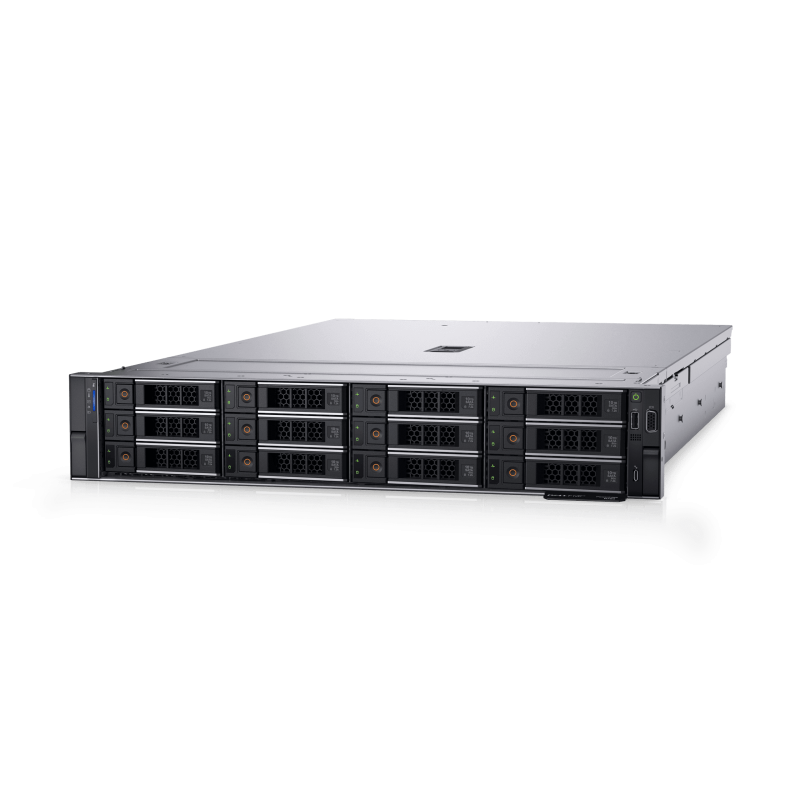

Dell PowerEdge R750 Server

Free Ground Shipping Within the Continental USA.

Experience unparalleled performance with the Dell PowerEdge R750 Server, equipped with cutting-edge Intel Xeon Scalable processors, versatile storage options, and advanced security features for complex workloads and enterprise-level virtualization.

Additional information

Brand	Dell
Server Model	Dell PowerEdge R750 Rack Server
Form Factor	Rack – 2U Server
Condition	Manufacturer Refurbished Server
Drive Bays	Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Processor (CPU)	Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor Intel Xeon Platinum Processors Intel Xeon Platinum 8352M 2.3G, 32C/64T, 11.2GT/s, 48M Cache, Turbo, HT (185W) DDR4-3200 Intel Xeon Platinum 8352S 2.2G, 32C/64T, 11.2GT/s, 48M Cache, Turbo, HT (205W) DDR4-3200 Intel Xeon Platinum 8352V 2.1G, 36C/72T, 11.2GT/s, 54M Cache, Turbo, HT (195W) DDR4-2933 Intel Xeon Platinum 8352Y 2.2G, 32C/64T, 11.2GT/s, 48M Cache, Turbo, HT (205W) DDR4-3200 Intel Xeon Platinum 8358 2.6G, 32C/64T, 11.2GT/s, 48M Cache, Turbo, HT (250W) DDR4-3200 Intel Xeon Platinum 8358P 2.6G, 32C/64T, 11.2GT/s, 48M Cache, Turbo, HT (240W) DDR4-3200 Intel Xeon Platinum 8360Y 2.4G, 36C/72T, 11.2GT/s, 54M Cache, Turbo, HT (250W) DDR4-3200 Intel Xeon Platinum 8362 2.8G, 32C/64T, 11.2GT/s, 48M Cache, Turbo, HT (265W) DDR4-3200 Intel Xeon Platinum 8368 2.4G, 38C/76T, 11.2GT/s, 57M Cache, Turbo, HT (270W) DDR4-3200 Intel Xeon Platinum 8368Q 2.6G, 38C/76T, 11.2GT/s, 57M Cache, Turbo, HT (270W) DDR4-3200 Intel Xeon Platinum 8380 2.3G, 40C/80T, 11.2GT/s, 60M Cache, Turbo, HT (270W) DDR4-3200 Intel Xeon Gold Processors Intel Xeon Gold 5318N 2.1G, 24C/48T, 11.2GT/s, 36M Cache, Turbo, HT (150W) DDR4-2666 Intel Xeon Gold 5318Y 2.1G, 24C/48T, 11.2GT/s, 36M Cache, Turbo, HT (165W) DDR4-2933 Intel Xeon Gold 6330 2G, 28C/56T, 11.2GT/s, 42M Cache, Turbo, HT (205W) DDR4-2933 Intel Xeon Gold 6330N 2.2G, 28C/56T, 11.2GT/s, 42M Cache, Turbo, HT (165W) DDR4-2666 Intel Xeon Gold 6338 2G, 32C/64T, 11.2GT/s, 48M Cache, Turbo, HT (205W) DDR4-3200 Intel Xeon Gold 6338N 2.2G, 32C/64T, 11.2GT/s, 48M Cache, Turbo, HT (185W) DDR4-2666 Intel Xeon Gold 6346 3.1G, 16C/32T, 11.2GT/s, 36M Cache, Turbo, HT (205W) DDR4-3200 Intel Xeon Gold 6348 2.6G, 28C/56T, 11.2GT/s, 42M Cache, Turbo, HT (235W) DDR4-3200 Intel Xeon Gold 6354 3G, 18C/36T, 11.2GT/s, 39M Cache, Turbo, HT (205W) DDR4-3200 Intel Xeon Silver Processors Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666
Memory	• 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max • Supports registered ECC DDR4 DIMMs only
Storage	Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Supported Operating Systems	• Canonical Ubuntu Server LTS • Citrix Hypervisor • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi
Storage Controllers	• Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB • Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB • External PERC (RAID): PERC H840, HBA355E
Dell PowerEdge R750 Power Consumption / Power Supply	• 700 W Titanium HLAC/240 mixed mode • 800 W Platinum AC/240 mixed mode • 1100 W Titanium AC/240 mixed mode • 1100 W DC -48 – -60 V • 1400 W Platinum AC/240 mixed mode • 1800 W Titanium HLAC/240 mixed mode • 2400 W Platinum AC/240 mixed mode • 2800 W Titanium HLAC/240 mixed mode
PowerEdge R750 Dimensions	• Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 758.3 mm (29.85 inches) – without bezel 772.14 mm (30.39 inches) – with bezel
Dell R750 Weight	Maximum weight (with all drives/SSDs/bezel) 12x 3.5-inch chassis 35.3 kg 8x 2.5-inch chassis 29.6 Kg 16x 2.5-inch chassis 32.6 24x 2.5-inch chassis 35.2 kg No drive chassis 27.7 kg
Warranty	5 Year VRLA Tech Warranty
