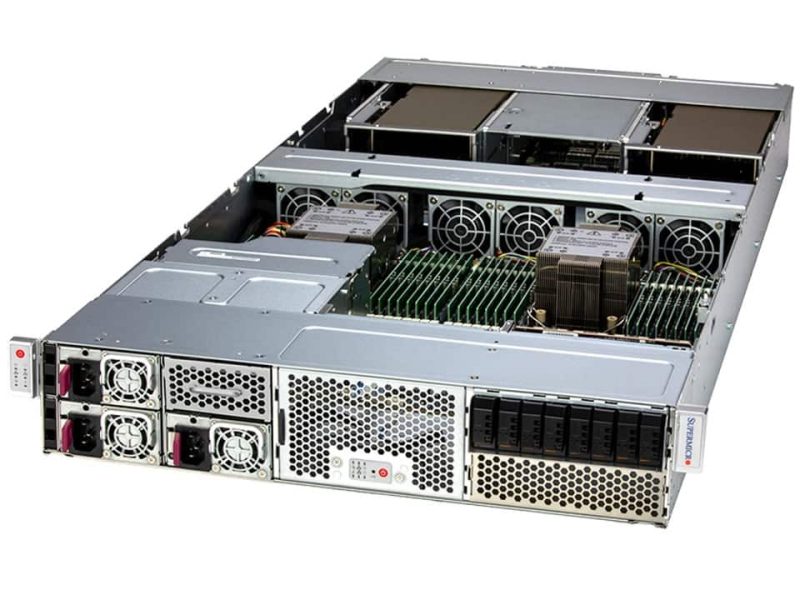

Supermicro GPU SuperServer SYS-221GE-NR – 2U Rack Server

Free Ground Shipping Within the Continental USA.

Unlock next-level computing with the Supermicro SYS-221GE-NR, a DP Intel 2U PCIe GPU powerhouse. Designed to support up to 4 NVIDIA H100, H100 NVL, L40S, or A100 GPUs, it’s perfect for AI, deep learning, and intensive workloads. Experience peak efficiency and scalability in your data center.

Additional information

Server Model	SuperServer SYS-221GE-NR CSE-GP201TS-R000NP
Form Factor	Rack – 2U Server
Condition	New
Drive Bays	Default: Total 8 bay(s) -8 front hot-swap E1.S NVMe drive bay(s)
Processor (CPU)	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Up to 56C/112T; Up to 112.5MB Cache per CPU Supports up to 350W TDP CPUs (Liquid Cooled) 2 x Intel Xeon Silver 4516Y+ Processor 24-Core 2.20GHz 45MB Cache (185W) – 5th Gen 2 x Intel Xeon Gold 5418Y Processor 24-Core 2.00GHz 45MB Cache (185W) – 4th Gen 2 x Intel Xeon Gold 5418N Processor 24-Core 1.80GHz 45MB Cache (165W) – 4th Gen 2 x Intel Xeon Gold 6442Y Processor 24-Core 2.60GHz 60MB Cache (225W) – 4th Gen 2 x Intel Xeon Gold 5520+ Processor 28-Core 2.20GHz 52.5MB Cache (205W) – 5th Gen 2 x Intel Xeon Platinum 8450H Processor 28-Core 2.00GHz 75MB Cache (250W) – 4th Gen 2 x Intel Xeon Gold 6448H Processor 32-Core 2.40GHz 60MB Cache (250W) – 4th Gen 2 x Intel Xeon Gold 8562Y+ Processor 32-Core 2.80GHz 60MB Cache (300W) – 5th Gen 2 x Intel Xeon Gold 6554S Processor 36-Core 2.20GHz 67.5MB Cache (270W) – 5th Gen 2 x Intel Xeon Platinum 8452Y Processor 36-Core 2.00GHz 67.5MB Cache (300W) – 4th Gen 2 x Intel Xeon Platinum 8460Y+ Processor 40-Core 2.00GHz 105MB Cache (300W) – 4th Gen 2 x Intel Xeon Platinum 8558 Processor 48-Core 2.10GHz 260MB Cache (330W) – 5th Gen 2 x Intel Xeon Platinum 8568Y+ Processor 48-Core 2.30GHz 300MB Cache (350W) – 5th Gen 2 x Intel Xeon Platinum 8558P Processor 48-Core 2.70GHz 260MB Cache (350W) – 5th Gen 2 x Intel Xeon Platinum 8470 Processor 52-Core 2.00GHz 105MB Cache (350W) – 4th Gen 2 x Intel Xeon Platinum 8470N Processor 52-Core 1.70GHz 97.5MB Cache (300W) – 4th Gen 2 x Intel Xeon Platinum 8570 Processor 56-Core 2.10GHz 300MB Cache (350W) – 5th Gen 2 x Intel Xeon Platinum 8480+ Processor 56-Core 2.00GHz 105MB Cache (350W) – 4th Gen 2 x Intel Xeon Platinum 8580 Processor 60-Core 2.00GHz 300MB Cache (350W) – 5th Gen 2 x Intel Xeon Platinum 8490H Processor 60-Core 1.90GHz 112.5MB Cache (350W) – 4th Gen
System Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 Memory Voltage: 1.1V
Storage	2 M.2 NVMe/SATA slot(s) (M-key)
Graphics Card	Max GPU Count: Up to 4 double-width GPU(s) Supported GPU: NVIDIA PCIe: – NVIDIA PCIe H100 – NVIDIA PCIe L40S – NVIDIA PCIe H100 NVL CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect: GPU-GPU Interconnect NVIDIA® NVLink® Bridge (optional)
Input / Output	Video: 1 mini-DP port(s)
System Bios	AMI 32MB SPI Flash EEPROM
Management	Software – SuperCloud Composer – Supermicro Server Manager (SSM) – Supermicro Update Manager (SUM) – SuperDoctor® 5 – Super Diagnostics Offline Power configurations – Power-on mode for AC power recovery – ACPI Power Management
Security	Hardware – Trusted Platform Module (TPM) 2.0 – Silicon Root of Trust (RoT) – NIST 800-193 Compliant Features – Cryptographically Signed Firmware – Secure Boot – Secure Firmware Updates – Automatic Firmware Recovery – Supply Chain Security: Remote Attestation – Runtime BMC Protections – System Lockdown
PC Health Monitoring	CPU – Monitors for CPU Cores, Chipset Voltages, Memory – 8+4 Phase-switching voltage regulator FAN – Fans with tachometer monitoring – Status monitor for speed control – Pulse Width Modulated (PWM) fan connectors Temperature – Monitoring for CPU and chassis environment – Thermal Control for fan connectors
SYS-221GE-NR Dimensions	Height: 3.46" (88 mm) Width: 17.25" (438.4 mm) Depth: 35.43" (900 mm) Package: 11" (H) x 22.5" (W) x 45.5" (D)
SYS-221GE-NR Weight	Gross Weight: 86.5 lbs (39.2 kg) Net Weight: 67.5 lbs (30.6 kg) No drive chassis 27.7 kg
Front Panel	LED – Hard drive activity LED – Network activity LEDs – Power status LED – System Overheat & Power Fail LED Buttons – Power On/Off button – System Reset button
Expansion Slots	PCI-Express (PCIe): Default Configuration: 7 PCIe 4.0 x16 FHFL slot(s)
System Cooling	Fans: 6 heavy duty fans with optimal fan speed control Air Shroud: 1 Air Shroud(s) Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)
Power Supply	2000W Redundant Titanium Level power supplies Dimension (WxHxL) : 73.5 x 40 x 185 mm +12V Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac) 12V SB Max: 3.5A / Min: 0A AC Input 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc / 50-60Hz (for CQC only)
Warranty	5 Year VRLA Tech Warranty
