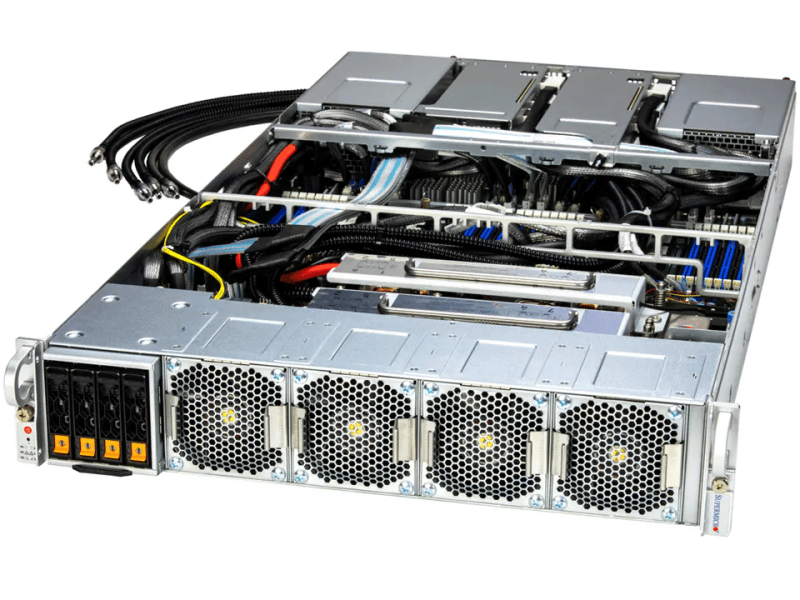

Supermicro GPU SuperServer SYS-221GE-TNHT-LCC – 2U Rack Server

Ships Within 24-72 Hours

Free Ground Shipping Within the Continental USA.

Unleash the power of Supermicro’s SYS-221GE-TNHT-LCC, designed for peak performance in the most demanding environments. This high-density 2U system integrates the NVIDIA® HGX™ H100 4-GPU with NVIDIA® NVLINK™ for superior GPU communication, making it ideal for AI, deep learning, and high-performance computing. It supports the latest 5th/4th Gen Intel® Xeon® Scalable processors, up to 8TB of 5600MTs ECC DDR5 memory across 32 DIMM slots, and includes 4 NVMe drives for GPU direct storage, ensuring lightning-fast data access. Perfect for organizations aiming to lead in technological innovation

Additional information

Server Model

SuperServer SYS-221GE-TNHT-LCC
CSE-228G2TS-R5K25P

Form Factor

Rack – 2U Server

Condition

New

Drive Bays

Drive Bays Configuration

Processor (CPU)

Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Up to 56C/112T; Up to 112.5MB Cache per CPU
Supports up to 350W TDP CPUs (Liquid Cooled)​

2 x Intel Xeon Silver 4516Y+ Processor 24-Core 2.20GHz 45MB Cache (185W) – 5th Gen
2 x Intel Xeon Gold 5418Y Processor 24-Core 2.00GHz 45MB Cache (185W) – 4th Gen
2 x Intel Xeon Gold 5418N Processor 24-Core 1.80GHz 45MB Cache (165W) – 4th Gen
2 x Intel Xeon Gold 6442Y Processor 24-Core 2.60GHz 60MB Cache (225W) – 4th Gen
2 x Intel Xeon Gold 5520+ Processor 28-Core 2.20GHz 52.5MB Cache (205W) – 5th Gen
2 x Intel Xeon Platinum 8450H Processor 28-Core 2.00GHz 75MB Cache (250W) – 4th Gen
2 x Intel Xeon Gold 6448H Processor 32-Core 2.40GHz 60MB Cache (250W) – 4th Gen
2 x Intel Xeon Gold 8562Y+ Processor 32-Core 2.80GHz 60MB Cache (300W) – 5th Gen
2 x Intel Xeon Gold 6554S Processor 36-Core 2.20GHz 67.5MB Cache (270W) – 5th Gen
2 x Intel Xeon Platinum 8452Y Processor 36-Core 2.00GHz 67.5MB Cache (300W) – 4th Gen
2 x Intel Xeon Platinum 8460Y+ Processor 40-Core 2.00GHz 105MB Cache (300W) – 4th Gen
2 x Intel Xeon Platinum 8558 Processor 48-Core 2.10GHz 260MB Cache (330W) – 5th Gen
2 x Intel Xeon Platinum 8568Y+ Processor 48-Core 2.30GHz 300MB Cache (350W) – 5th Gen
2 x Intel Xeon Platinum 8558P Processor 48-Core 2.70GHz 260MB Cache (350W) – 5th Gen
2 x Intel Xeon Platinum 8470 Processor 52-Core 2.00GHz 105MB Cache (350W) – 4th Gen
2 x Intel Xeon Platinum 8470N Processor 52-Core 1.70GHz 97.5MB Cache (300W) – 4th Gen
2 x Intel Xeon Platinum 8570 Processor 56-Core 2.10GHz 300MB Cache (350W) – 5th Gen
2 x Intel Xeon Platinum 8480+ Processor 56-Core 2.00GHz 105MB Cache (350W) – 4th Gen
2 x Intel Xeon Platinum 8580 Processor 60-Core 2.00GHz 300MB Cache (350W) – 5th Gen
2 x Intel Xeon Platinum 8490H Processor 60-Core 1.90GHz 112.5MB Cache (350W) – 4th Gen

System Memory

Slot Count: 32 DIMM slots/16 Channels
Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM

Storage

M.2

Graphics Card

Max GPU Count: Up to 4 onboard GPU(s)
Supported GPU: NVIDIA SXM: HGX H100 4-GPU (80GB)
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: NVIDIA® NVLink®

Input / Output

Video: 1 VGA port(s)

System Bios

AMI 32MB SPI Flash EEPROM

Management

Software
– SuperCloud Composer
– Supermicro Server Manager (SSM)
– Supermicro Update Manager (SUM)
– SuperDoctor® 5
– Super Diagnostics Offline

Power configurations
– Power-on mode for AC power recovery
– ACPI Power Management

Security

Hardware
– Trusted Platform Module (TPM) 2.0
– Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features
– Cryptographically Signed Firmware
– Secure Boot
– Secure Firmware Updates
– Automatic Firmware Recovery
– Supply Chain Security: Remote Attestation
– Runtime BMC Protections
– System Lockdown

PC Health Monitoring

CPU
– Monitors for CPU Cores, Chipset Voltages, Memory
– 8+4 Phase-switching voltage regulator
FAN
– Fans with tachometer monitoring
– Status monitor for speed control
– Pulse Width Modulated (PWM) fan connectors
Temperature
– Monitoring for CPU and chassis environment
– Thermal Control for fan connectors

SYS-221GE-TNHT-LCC Dimensions

Height: 3.46" (88 mm)
Width: 17.25" (438.4 mm)
Depth: 35.43" (900 mm)

Package: 11" (H) x 22.5" (W) x 45.5" (D)

SYS-221GE-TNHT-LCC Weight

Gross Weight: 86.5 lbs (39.2 kg)
Net Weight: 67.5 lbs (30.6 kg)

Front Panel

LED
– Hard drive activity LED
– Network activity LEDs
– Power status LED
– System Overheat & Power Fail LED
Buttons
– Power On/Off button
– System Reset button

System Cooling

Fans: 4 Fan 8cm Fan(s)
Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)

Power Supply

2x 5250W Redundant Titanium (certification pending) Level power supplies

Dimension (WxHxL) : 106.5 x 82.1 x 245.3 mm
+12V: Max: 125A / Min: 0A (200Vac-240Vac)
AC Input: 5250W: 200-240Vac / 50-60Hz
Output Type: Backplanes (gold finger)

Warranty

5 Year VRLA Tech Warranty
