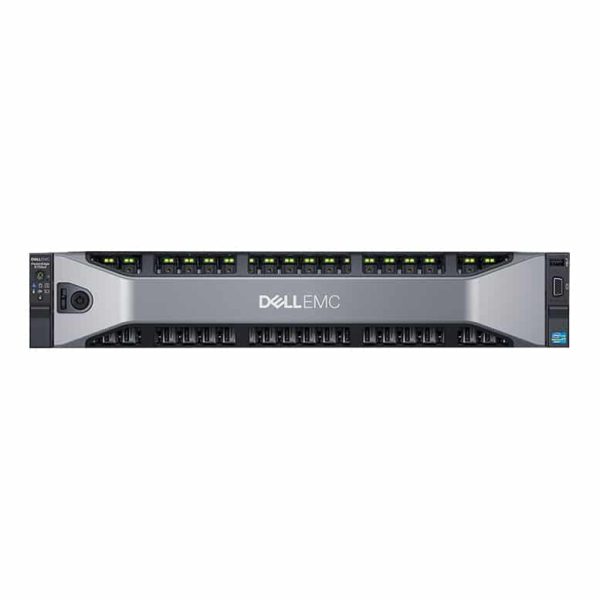

Dell PowerEdge R730xd Server

Ships Within 24-72 Hours

Free Ground Shipping Within the Continental USA.

Maximize server based storage flexibility and performance with the outstanding Dell PowerEdge R730xd Server, part of the 13th generation of PowerEdge servers. The R730xd offers an optimal balance of storage utilization, performance and cost with an optional in-server hybrid storage configuration that can support tiering and capacity for up to 28 drives in a 2S/2U system, including up to 18 x 1.8″ SATA SSDs. Dell’s PowerEdge R730xd Server offers high-performance computing along with an extraordinary storage capacity. The R730xd is a great option to handle demanding workloads such as e-commerce, virtual desktop infrastructure (VDI), and databases. Need Dell R730xd support? Stuck between the Dell PowerEdge Servers R730xd vs R730? Give us a call at (213) 810–3013 and we’ll get you setup in no time.

Additional information



Server Model

Dell PowerEdge R730xd Rack Server


2U rack


Manufacturer Refurbished Server

Drive Bays

Up to 16 x 3.5” SAS, SATA, NL-SAS, SSD + 2 x 2.5” drives
Up to 18 x 1.8” SAS, SATA, NL-SAS, SSD drives + 8 x 3.5” SAS, SATA, NL-SAS, SSD drives, + 2 x 2.5” HDD
Up to 26 x 2.5” SAS, SATA, NL-SAS, SSD, PCIe SSD drives


Intel Xeon processor E5-2600 v3 & v4 product family

Internal Interconnect

2 Intel QPI links; 6.4GT/s; 7.2GT/s; 8.0GT/s


2.5MB per core; core options: 2, 4, 6, 8, 10, 12, 14, 16, 18

Dell R730xd Memory Configuation

8GB RAM, 16GB RAM, 32GB RAM, 64GB RAM, 128GB RAM, 256GB RAM, 384GB RAM

Dell PowerEdge R730xd Hard Drive Configuration

Up to 31.9TB using 18 x 1.8” 960GB SATA SSD + 8 x 3.5” 1.8TB SAS HDD
Up to 43.2TB using 24 x 2.5” 1.8TB SAS HDD + 2 x 2.5” 1.8TB SAS HDD
Up to 99.6TB using 12 x 3.5” 6TB NL-SAS HDD or SSD + 4 x 3.5” 6TB SAS + 2 x 2.5” 1.8TB SAS HDD or SSD

RAID Controller

Internal controllers: PERC S130 (software RAID; R730 only), PERC H330, PERC H730, PERC H730P
External HBAs (RAID): PERC H830
External HBAs (non-RAID): 12Gb/s SAS HBA

PCI Slots

Max 7 + 1 x PCIe 3.0/6 + 1 x PCIe 3.0 option to eliminate Riser 1

Network Controller

Quad Port 1Gb NDC

Embedded NICs

Select Network Adapter NDC
4 x 1GbE, 2 x 10GbE, 4 x 10GbE

Dell R730xd Power Consumption / Power Supplies

Hot-plug, redundant power supply units: 750W AC (Titanium); 495W, 750W or 1100W AC (Platinum); 1100W DC

Power Efficiency 80 PLUS Certification

Redundant Power Supplies Based on Configuration

Supported Operating Systems

Red Hat Enterprise Linux 7, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Novell SuSE Linux ES 11, VMware ESXi 5.1, VMware ESXi 5.5, VMware ESXi 6.0, VMware ESXi 6.7, Citrix XenServer 6.5, Citrix XenServer 7.0, SUSE Linux ES 12, Red Hat Enterprise Linux 6, VMware ESXi 6.5

Systems Management

Systems management: IPMI 2.0 compliant; Dell OpenManage Essentials; Dell OpenManage Mobile; Dell OpenManage Power Center

Remote management: iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade) iDRAC Quick Sync

Dell OpenManage Integrations: Dell OpenManage Integration Suite for Microsoft System Center, Dell OpenManage Integration for VMware vCenter

Dell OpenManage Connections: HP Operations Manager, IBM Tivoli Netcool and CA Network and Systems Management, Dell OpenManage Plug-in for Oracle Database Manager

Dell R730xd Weight

72 Lbs Max

Dell R730xd Dimensions

28.46 x 18.99 x 3.44 (Inches)


5 Year VRLA Tech Warranty

Dell R730xd Data Sheet

Dell R730xd Manual

Dell R730xd Technical Guide

Dell R730xd Drivers
