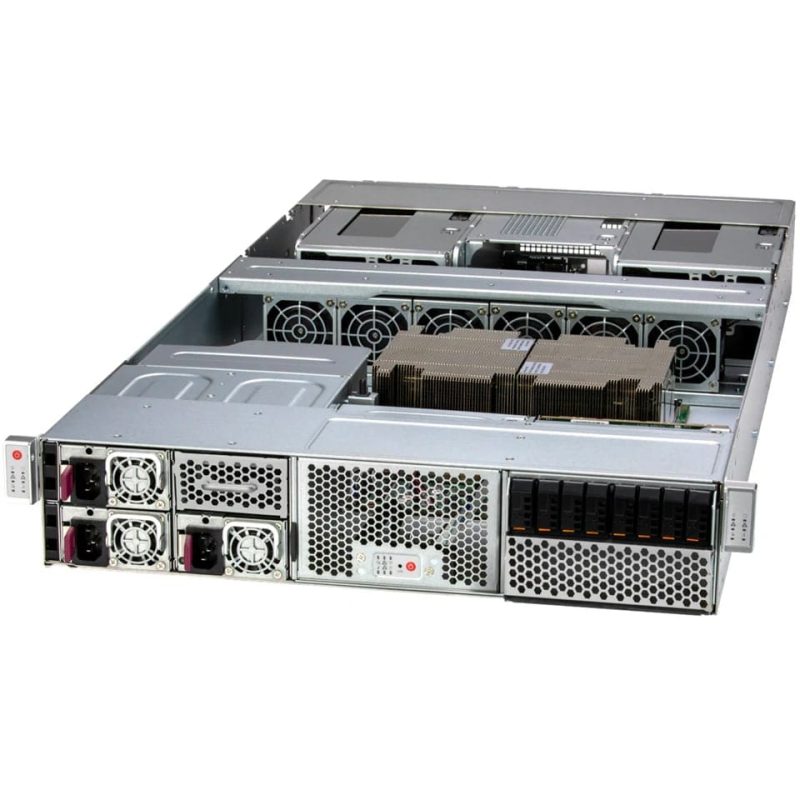

Supermicro GPU ARS-221GL-NR - 2U Rack Server
Supermicro GPU ARS-221GL-NR - 2U Rack Server
Supermicro GPU ARS-221GL-NR - 2U Rack Server
Supermicro GPU ARS-221GL-NR - 2U Rack Server

Supermicro GPU ARS-221GL-NR – 2U Rack Server

$0.00

The ARS-221GL-NR from Supermicro, your gateway to advanced computing. Optimized for High Performance Computing, AI/Deep Learning Training, and LLM Natural Language Processing, this server is a powerhouse for data-intensive tasks. Perfect for cutting-edge research and development in AI, deep learning, and more.


Add to cart
Server Model

ARS-221GL-NR
CSE-GP201TS-R000NP

Form Factor

Rack – 2U Server

Condition

New

Drive Bays

Default: Total 8 bay(s)

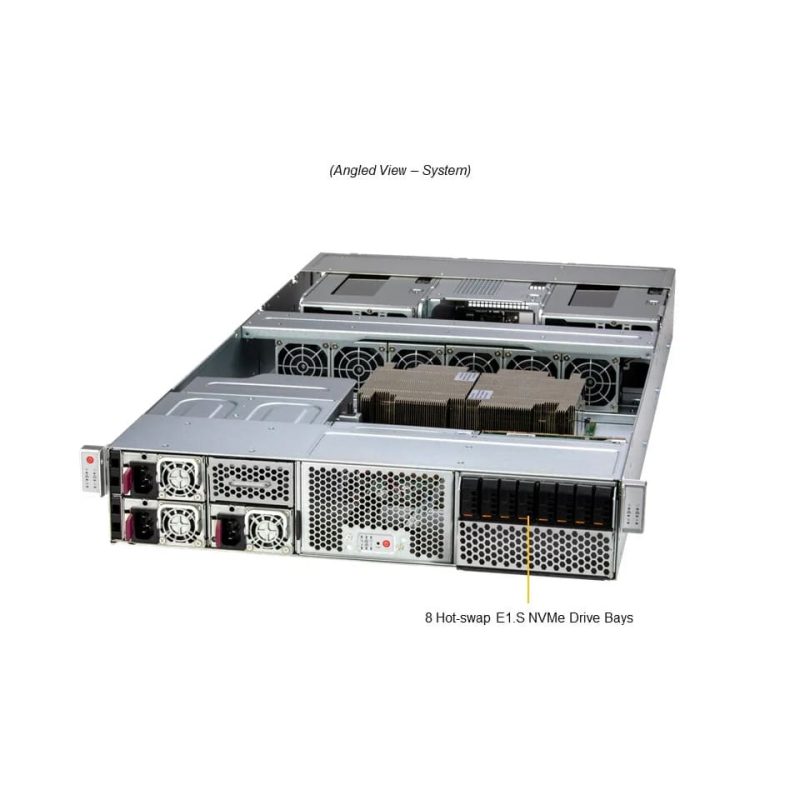

8 front hot-swap E1.S NVMe drive bay(s)

Processor (CPU)

Dual processor(s)

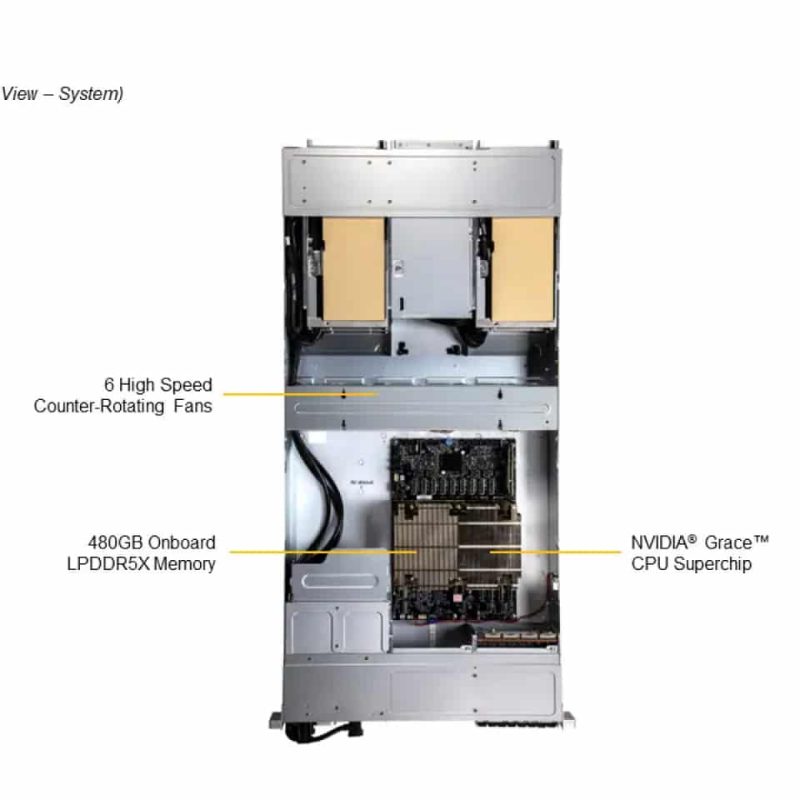

NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip

Supports up to 500W TDP CPUs (Air Cooled)

System Memory

Slot Count: Onboard Memory
Max Memory: Up to 480GB ECC LPDDR5X
Memory Voltage: 1.1V

Storage

M.2

Graphics Card

Max GPU Count: Up to 4 double-width GPU(s)
Supported GPU: NVIDIA PCIe:
– NVIDIA PCIe H100
– NVIDIA PCIe L40S
– NVIDIA PCIe H100 NVL
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional)

Input / Output

Video: 1 mini-DP port(s)

System Bios

AMI 32MB SPI Flash EEPROM

Management

Software
– SuperDoctor® 5
– Watch Dog
– NMI
– SUM
– KVM with dedicated LAN
– SPM
– Intel® Node Manager
– SSM
– IPMI 2.0
– Redfish API
– OOB Management Package (SFT-OOB-LIC )

Power configurations
– Power-on mode for AC power recovery
– ACPI Power Management

PC Health Monitoring

CPU
– Monitors for CPU Cores, Chipset Voltages, Memory
FAN
– Fans with tachometer monitoring
– Status monitor for speed control
– Pulse Width Modulated (PWM) fan connectors
Temperature
– Monitoring for CPU and chassis environment
– Thermal Control for fan connectors

ARS-221GL-NR Dimensions

Height: 3.46" (88 mm)
Width: 17.25" (438.4 mm)
Depth: 35.43" (900 mm)

Package: 11" (H) x 22.5" (W) x 45.5" (D)

SYS-221GE-NR Weight

Gross Weight: 86.5 lbs (39.2 kg)
Net Weight: 67.5 lbs (30.6 kg)

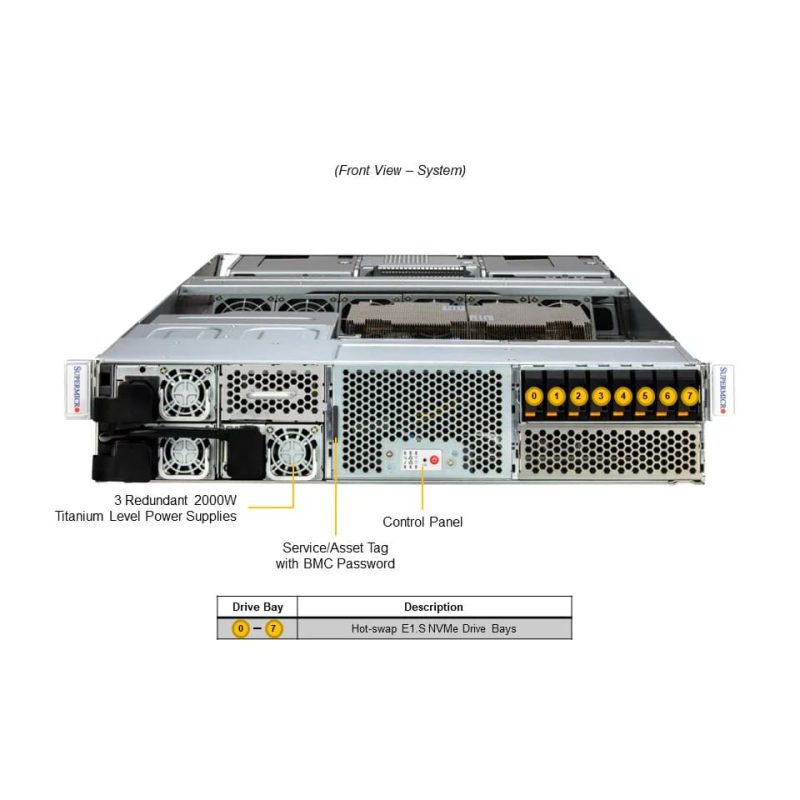

Front Panel

LED
– Hard drive activity LED
– Network activity LEDs
– Power status LED
– System Overheat & Power Fail LED
Buttons
– Power On/Off button
– System Reset button

Expansion Slots

PCI-Express (PCIe): Default
Configuration: 7 PCIe 4.0 x16 FHFL slot(s)

System Cooling

6 heavy duty fans with optimal fan speed control

Power Supply

2000W Redundant Titanium Level power supplies

Dimension (WxHxL) : 73.5 x 40 x 185 mm

+12V
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)

12V SB
Max: 3.5A / Min: 0A

AC Input
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for CQC only)

Output Type: Backplanes (gold finger)
