VRLA Tech AMD Ryzen Threadripper Workstation

The VRLA Tech AMD Threadripper Workstation is a custom-built AMD Ryzen Threadripper 9000 series system for high-throughput multi-threaded workloads. It supports up to 64 cores, 256GB of 4-channel DDR5 memory, dual GPUs at full PCIe 5.0 x16 bandwidth, and 48 PCIe 5.0 lanes on the TRX50 platform. It is the right platform when you outgrow Ryzen’s 16-core ceiling but do not need Threadripper Pro’s 8-channel ECC memory, 128 PCIe lanes, or 4-GPU capability — the middle path for production 3D rendering, VFX, dual-GPU AI development, and heavy software compilation. Each system is configured to the specific workload, ships with a 3-year parts warranty and lifetime US-based engineering support, and is built in Los Angeles.

Platform comparison

What you configure

Every Threadripper workstation we build is a full custom configuration. The components we help you specify:

• Processor. The 9960X (24 cores) is the entry into Threadripper at meaningful cost savings. The 9970X (32 cores) hits the price-performance sweet spot for most production workloads. The 9980X (64 cores) targets users who will saturate more than 32 cores regularly — heavy rendering, compilation, or parallel simulation.
• Memory. 4-channel DDR5 UDIMM, sized from 64GB to 256GB. Populating all four channels doubles memory bandwidth compared to 2-channel Ryzen and directly benefits CPU rendering, compilation, and memory-bound simulation codes.

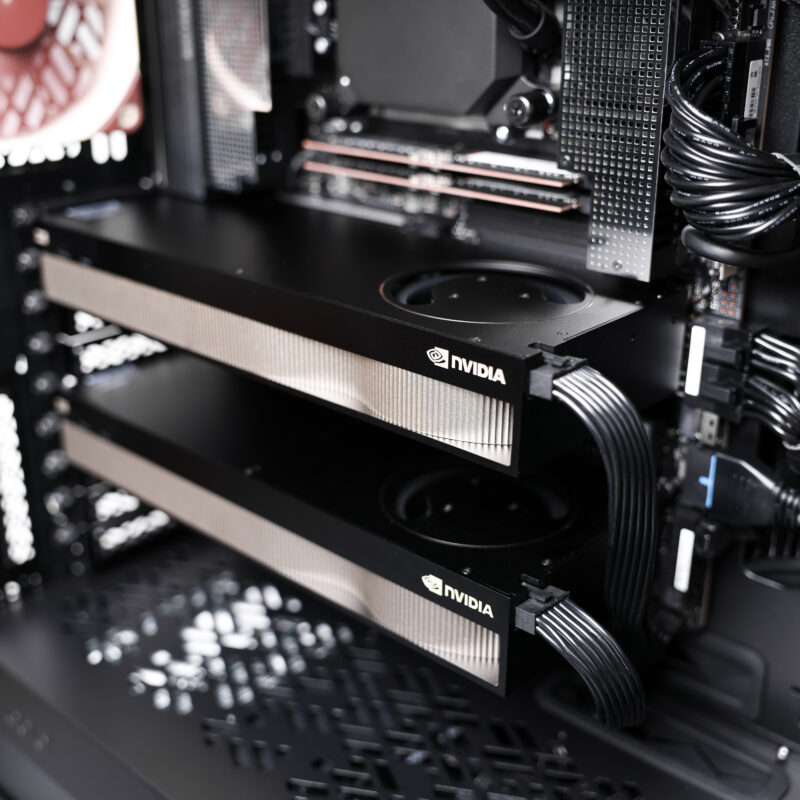

• GPUs. One or two cards at full PCIe 5.0 x16 bandwidth. Common pairings include 2× NVIDIA RTX 5090 for rendering and GPU compute, 2× RTX PRO 6000 Blackwell (96GB VRAM each) for local LLM inference and fine-tuning, or a single H100 PCIe for mixed AI workloads.
• Storage. PCIe 5.0 NVMe boot drive plus high-capacity secondary storage for project files and media scratch. For 6K and 8K video pipelines, we typically spec a dedicated NVMe scratch volume separate from the OS drive.
• Cooling and chassis. 360mm AIO liquid cooling on the 9980X to sustain all-core boost under rendering and compilation load; 280mm or 360mm on the 9960X and 9970X. Full-tower chassis standard to accommodate E-ATX motherboards, dual double-wide GPUs, and 360mm radiators with adequate airflow.

Workloads we build Threadripper for

Most of our Threadripper workstation builds fall into one of these categories:

• Production 3D rendering. Cinema 4D with Redshift, Blender Cycles, Maya with Arnold, 3ds Max with V-Ray. 32 or 64 cores directly reduce render time on CPU-path and hybrid renderers.
• VFX and compositing. Houdini FX simulations (where ECC is not required), Nuke compositing, After Effects with heavy effects stacks. Thread count and dual-GPU capability are the main drivers.
• Software compilation and development. Large C++ or Rust codebases, Docker-heavy dev environments, parallel test runs. Threadripper’s core count substantially reduces build times compared to Ryzen.
• Dual-GPU AI development. Local LLM fine-tuning with 2× RTX PRO 6000 Blackwell (192GB combined VRAM), distributed inference testing, computer vision research. For production-scale training, Threadripper Pro or EPYC is the correct step.
• 6K and 8K video editing. Premiere Pro and DaVinci Resolve workflows where 1-2 GPUs and high core counts accelerate both playback and render. Our software-specific Threadripper configurations cover the full range of creative applications.

Why buy from VRLA Tech

VRLA Tech has been building custom workstations and GPU servers in Los Angeles since 2016. We build for studios, research labs, engineering firms, and creative professionals — not for bulk retail.

Our enterprise clients include

• General Dynamics
• Los Alamos National Laboratory
• Johns Hopkins University
• Miami University
• George Washington University

Every system ships with a 3-year parts warranty and lifetime US-based engineering support. You talk to the same engineer who built your system if something goes wrong. No offshore tier-one scripts, no ticket queues that disappear.

Lead time is typically 2 to 3 weeks for standard Threadripper configurations and 3 to 4 weeks for dual-GPU builds requiring high-VRAM cards in limited supply.

Frequently asked questions

Hardware & platform questions

What is the difference between AMD Threadripper and Threadripper Pro?

Threadripper (non-Pro) uses the TRX50 chipset with 4-channel DDR5 memory and 48 PCIe 5.0 lanes, supporting up to 64 cores and typically up to 256GB of RAM. Threadripper Pro uses the WRX90 chipset with 8-channel DDR5 ECC memory and 128 PCIe 5.0 lanes, supporting up to 96 cores, up to 2TB of RAM, and four double-wide GPUs. Non-Pro Threadripper is significantly cheaper but lacks ECC RDIMM support and 4-GPU capability.

How many CPU cores does a non-Pro Threadripper offer?

Current Ryzen Threadripper 9000 series offers 24 cores (9960X), 32 cores (9970X), or 64 cores (9980X). All three run on the TRX50 platform with 4-channel DDR5 memory and 48 PCIe 5.0 lanes.

Can I run two GPUs on a Threadripper workstation?

Yes. The 48 PCIe 5.0 lanes on TRX50 motherboards support two double-wide GPUs at full x16 bandwidth each. This is one of the main advantages of Threadripper over Ryzen 9000, which typically supports only one GPU at full bandwidth or two GPUs at x8/x8.

Does Threadripper non-Pro support ECC memory?

Threadripper non-Pro on TRX50 supports standard UDIMM DDR5 memory only. Full ECC RDIMM support requires Threadripper Pro on the WRX90 chipset. For most production workstation workloads this distinction does not matter; for long-running scientific simulations or week-long production renders where a single-bit memory error would be catastrophic, step up to Threadripper Pro.

What GPU should I pair with a Threadripper workstation for AI and deep learning?

For dual-GPU AI work — local LLM fine-tuning, distributed inference, computer vision research — pair Threadripper with two NVIDIA RTX PRO 6000 Blackwell GPUs (96GB VRAM each, 192GB combined) running at full PCIe 5.0 x16 bandwidth. For mixed AI and rendering workloads, dual RTX 5090 (32GB each) delivers strong price-performance. For single-GPU production AI, a single H100 PCIe is also supported. Threadripper’s 48 PCIe lanes ensure both GPUs avoid the bandwidth bottlenecks that occur on consumer Ryzen platforms.

Threadripper vs Ryzen 9 9950X — when should I upgrade?

Move from Ryzen 9 9950X to Threadripper when your workload needs more than 16 cores (Threadripper offers up to 64), more than 192GB of RAM (Threadripper supports 256GB), or true dual-GPU capability at full bandwidth. Stay on Ryzen 9950X if your workloads are single-threaded or lightly multi-threaded, single-GPU, and fit inside 192GB of RAM — the 9950X’s higher clock speed will outperform Threadripper on those specific workloads.

Threadripper 9970X vs Threadripper Pro 9975WX — which should I choose?

Both are 32-core processors. Choose 9970X (non-Pro) if two GPUs are enough, 256GB RAM is sufficient, and you do not need ECC. Choose 9975WX (Pro) if you need four GPUs, more than 256GB of RAM, 8-channel memory bandwidth, or ECC error correction. The 9970X is typically 40 to 50 percent cheaper than the 9975WX for the same core count.

What kind of cooling does a Threadripper 9980X need?

The Threadripper 9980X has a 350W TDP and requires 360mm AIO liquid cooling or equivalent custom loop cooling to sustain all-core boost clocks under sustained load. Lower-tier Threadripper CPUs (9960X, 9970X) can be cooled by premium air coolers but still benefit from 280mm or 360mm AIO for rendering and compilation workloads.
